FP6115 Datasheet - Feeling Technology

Asynchronous Step-Down Regulator

FP6115 Features

* Precision Feedback Reference Voltage: 0.8V (2%) Wide Supply Voltage Operating Range: 3.6 to 23V Low Current Consumption: 3mA Internal Fixed Oscillator Frequency: 340KHz (Typ.) Internal Soft-Start Function (SS) Built-In P-MOSFET for 2A Output Loading Over Current Protection Package: SOP-8L Typical A

FP6115 General Description

The FP6115 is a buck switching regulator for wide operating voltage application fields. The FP6115 includes a high current P-MOSFET, a high precision reference (0.8V) for comparing output voltage with a feedback amplifier, an internal soft start timer and dead-time controller. The oscillator is for .

FP6115 Datasheet (313.58 KB)

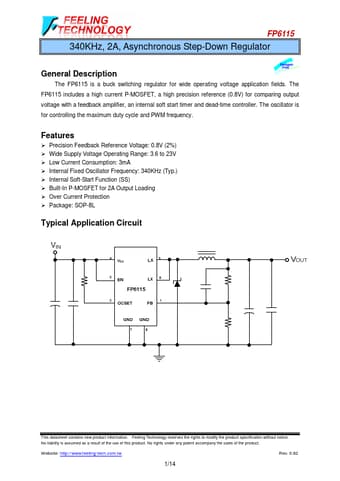

FP6115 Datasheet Preview — Preview of FP6115 PDF

Datasheet Details

Part number:

FP6115

Manufacturer:

Feeling Technology

File Size:

313.58 KB

Description:

Asynchronous step-down regulator.
