FP702 - Single Operational Amplifier and Voltage Reference

Feeling Technology

📥 Download Datasheet

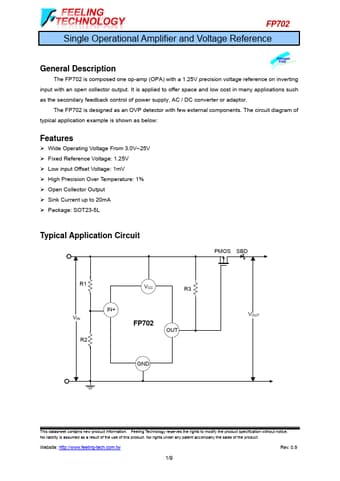

FP702 Datasheet Preview — Preview of FP702 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: FP702
Manufacturer: Feeling Technology
File Size: 276.76 KB
Datasheet: FP702-FeelingTechnology.pdf
Description: Single Operational Amplifier and Voltage Reference

FP702 Product details

Description

The FP702 is composed one op-amp (OPA) with a 1.25V precision voltage reference on inverting input with an open collector output..

Features

Wide Operating Voltage From 3.0V~25V.
Fixed Reference Voltage: 1.25V.
Low input Offset Voltage: 1mV.
High Precision Over Temperature: 1%.
Open Collector Output.
Sink Current up to 20mA.
Package: SOT23-5L Typical Application Circuit PMOS SBD R1 VCC R3 IN+ VIN VOUT FP702 R2 OUT GND This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a resu.
