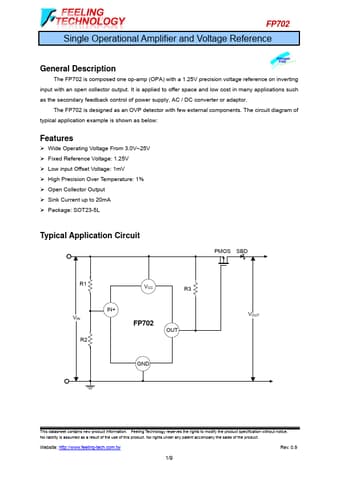

Description
The FP702 is composed one op-amp (OPA) with a 1.25V precision voltage reference on inverting input with an open collector output..
Features
- Wide Operating Voltage From 3.0V~25V.
- Fixed Reference Voltage: 1.25V.
- Low input Offset Voltage: 1mV.
- High Precision Over Temperature: 1%.
- Open Collector Output.
- Sink Current up to 20mA.
- Package: SOT23-5L
Typical Application Circuit
PMOS SBD
R1
VCC
R3
IN+ VIN
VOUT
FP702
R2
OUT
GND
This datasheet contains new product information. Feeling Technology reserves the rights to modify the product specification without notice. No liability is assumed as a resu.
