CTP4550 Toroidal Inductors High Current

CTP4550 Description

www.DataSheet4U.com Toroidal Inductors High Current CTP4550 CTP4550 is a high current inductor with the following data and .

CTP4550 Features

* Core type: 1.30” o. d. , Iron Powder, perm 33.
* Power rating: 3.13 watts for temp. rise 50˚C.

CTP4550 Applications

* Filter Inductors in Switch Mode Power Supplies. Three mounting styles are offered: 1 Flying leads (1.00”), for vertical or horizontal mounting. 2 4-pin header, for vertical mounting. 3 Threaded center hole, flying leads (2.00”). MECHANICAL Style 1 1.60 0.75 Style 2 1.60 0.60 Style 3 1.80 0.80 Th

📥 Download Datasheet

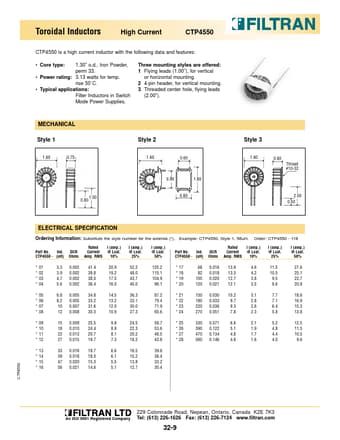

Preview of CTP4550 PDF

Datasheet Details

Part number
CTP4550
Manufacturer
Filtran
File Size
82.27 KB
Datasheet
CTP4550_Filtran.pdf
Description
Toroidal Inductors High Current
