CTP4554, Toroidal Inductors Medium Current

www.DataSheet4U.com Toroidal Inductors Medium Current CTP4554 CTP4554 is a medium current inductor with the following data and .

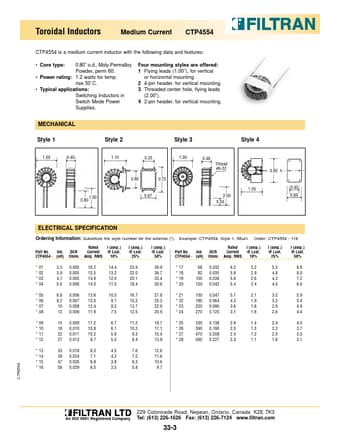

datasheet Preview Page 1 from Datasheet4u.com

CTP4554_Filtran.pdf

CTP4554 Datasheet Preview — Preview of CTP4554 PDF

Datasheet Details

Part number:

CTP4554

Manufacturer:

Filtran

File Size:

85.78 KB

Description:

Toroidal Inductors Medium Current

Features

* Core type: 0.80” o. d. , Moly-Permalloy Powder, perm 60.
* Power rating: 1.2 watts for temp. rise 50˚C.

Applications

* Switching Inductors in Switch Mode Power Supplies. Four mounting styles are offered: 1 Flying leads (1.00”), for vertical or horizontal mounting. 2 4-pin header, for vertical mounting. 3 Threaded center hole, flying leads (2.00”). 4 2-pin header, for vertical mounting. MECHANICAL Style 1 1.00 0.40
