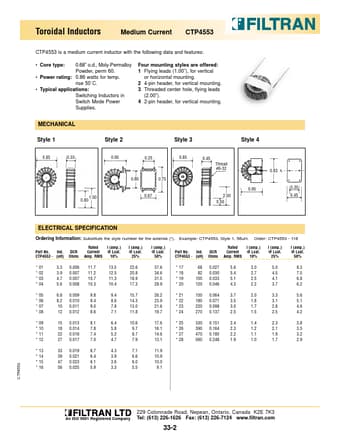

CTP4553 Datasheet, Current, Filtran

CTP4553 Features

• Current
• Core type: 0.68” o.d., Moly-Permalloy Powder, perm 60.
• Power rating: 0.86 watts for temp. rise 50˚C.
• Typical applications: Switching Inductors in Switch M

PDF File Details

Part number:

CTP4553

Manufacturer:

Filtran

File Size:

85.75kb

Download:

📄 Datasheet

Description:

Toroidal inductors high current.

CTP4553 Application

• Applications Switching Inductors in Switch Mode Power Supplies. Four mounting styles are offered: 1 Flying leads (1.00”), for vertical or horizonta
