CTP4551 Datasheet, Current, Filtran

CTP4551 Features

  • Current
  • Core type: 1.57” o.d., Iron Powder, perm 33.
  • Power rating: 4.50 watts for temp. rise 50˚C.
  • Typical applications: Filter Inductors in Switch Mode Power Sup

PDF File Details

Part number:

CTP4551

Manufacturer:

Filtran

File Size:

82.25kb

Download:

📄 Datasheet

Description:

Toroidal inductors high current.

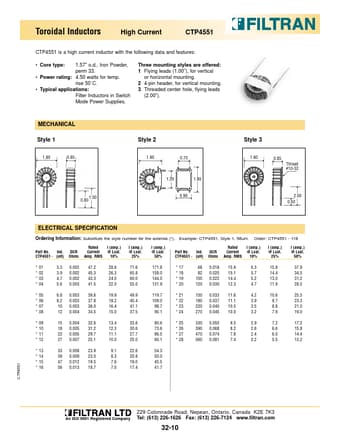

Datasheet Preview: CTP4551 📥 Download PDF (82.25kb)

CTP4551 Application

  • Applications Filter Inductors in Switch Mode Power Supplies. Three mounting styles are offered: 1 Flying leads (1.00”), for vertical or horizontal
