LMA110 - .5-6 GHz MESFET Amplifier

Datasheet Summary

Description

The Filtronic LMA110A is a GaAs monolithic distributive amplifier which operates from 0.5 to 6 GHz.

This amplifier produces a typical gain of 23dB with a noise figure of 2.7dB.

The LMA110A is suitable for wide-band low noise gain block, EW and commercial PCN applications.

Features

  • 2.7dB Typical Noise Figure 23dB Typical Gain 12dBm Saturated Output Power 12dB Input/Output Return Loss Typical 0.5-6GHz Frequency Bandwidth +8.5 Volts Dual Bias Supply DC Decoupled RF Input and Output Chip Size : 1.62mmX1.62mm (.064”X.064”) Chip Thickness : 100µm 2 Pad Dimension : 100µm .5-6 GHz MESFET Amplifier LMA110A.

📥 Download Datasheet

Datasheet preview – LMA110

Datasheet Details

Part number LMA110
Manufacturer Filtronic Compound Semiconductors
File Size 80.91 KB
Description .5-6 GHz MESFET Amplifier
Datasheet download datasheet LMA110 Datasheet
Additional preview pages of the LMA110 datasheet.

📁 Similar Datasheet

  • LMA1117 - 1A Low Dropout Positive Adjustable (Kexin)
  • LMA1009 - 12 x 12-bit Multiplier-Accumulator (LOGIC Devices Incorporated)
  • LMA1010 - 16 x 16-bit Multiplier-Accumulator (LOGIC Devices Incorporated)
  • LMA2009JC20 - 12 x 12-bit Multiplier-Accumulator (LOGIC Devices Incorporated)
  • LMA2009JC45 - 12 x 12-bit Multiplier-Accumulator (LOGIC Devices Incorporated)
  • LMA2010JC25 - 16 x 16-bit Multiplier-Accumulator (LOGIC Devices Incorporated)
  • LMA2010JC35 - 16 x 16-bit Multiplier-Accumulator (LOGIC Devices Incorporated)
  • LMA62R042A13MS - LCD (Nanya)
  • LMAJ6R003APS - LCD (Nanya)
Other Datasheets by Filtronic Compound Semiconductors
  • LMA110 - .5-8GHz MESFET Amplifier
  • LMA110A - .5-6 GHz MESFET Amplifier
  • LMA110B - .5-8GHz MESFET Amplifier
  • LMA116 - 2-10GHz MESFET Amplifier
  • LMA183 - 2-18 GHz MESFET Amplifier
  • LMA184 - 2-18 GHz MESFET Amplifier
  • LMA208C - 2-26 GHz PHEMT Amplifier
  • LMA208G - 2-26GHz PHEMT Amplifier

Full PDF Text Transcription

Click to expand full text

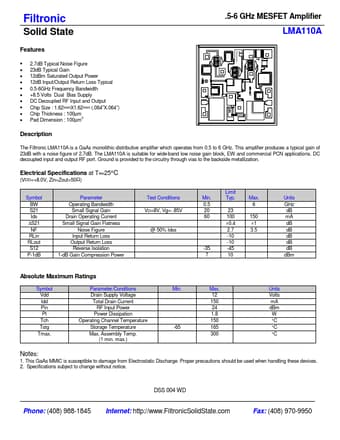

Filtronic Solid State Features • • • • • • • • • • 2.7dB Typical Noise Figure 23dB Typical Gain 12dBm Saturated Output Power 12dB Input/Output Return Loss Typical 0.5-6GHz Frequency Bandwidth +8.5 Volts Dual Bias Supply DC Decoupled RF Input and Output Chip Size : 1.62mmX1.62mm (.064”X.064”) Chip Thickness : 100µm 2 Pad Dimension : 100µm .5-6 GHz MESFET Amplifier LMA110A Description The Filtronic LMA110A is a GaAs monolithic distributive amplifier which operates from 0.5 to 6 GHz. This amplifier produces a typical gain of 23dB with a noise figure of 2.7dB. The LMA110A is suitable for wide-band low noise gain block, EW and commercial PCN applications. DC decoupled input and output RF port. Ground is provided to the circuitry through vias to the backside metallization.
