KBP201

The KBP201 is Miniature Glass Passivated Single-Phase Bridge Rectifiers designed by First Silicon.

Product Overview

First Silicon

Part number	KBP201, KBP2005
Manufacturer	First Silicon
File Size	225.81 KB
Description	Miniature Glass Passivated Single-Phase Bridge Rectifiers
Datasheet	KBP2005-FirstSilicon.pdf
Note	This datasheet PDF includes multiple part numbers: KBP201, KBP2005. Please refer to the document for exact specifications by model.

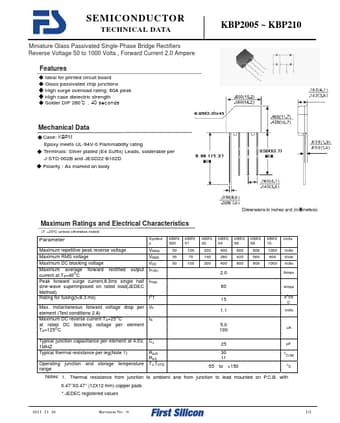

Additional preview pages of the KBP201 datasheet.

Ideal for printed circuit board Glass passivated chip junctions High surge overload rating: 60A peak High case dielectric strength Solder DIP 260℃ , 40 seconds Mechanical Data Case: KBPM Epoxy meets UL-94V-0 Flammability rating Terminals: Silver plated (E4 Suffix) Leads, solderable per J-STD-002B and JESD22-B102D Polarity : As marked on body KBP2005 ~ KBP210 Maximum Ratings and Electrical Characteristics (T =25oC unless otherwise noted) Parameter Symbol KBP2 KBP2 s 005 01 Maximum repetitiv.
