FR8018 - 500KHz Synchronous Step-Down DC/DC Converter

Datasheet Summary

Description

The FR8018 is a synchronous step-down DC/DC converter that provides wide 4.5V to 23V input voltage range and 4A continuous load current capability.

At light load condition, the FR8018 can operate at PSM mode to support high efficiency and reduce power loss.

Features

  • Low RDS(ON) Integrated Power MOSFET.
  • Internal Compensation Function.
  • Wide Input Voltage Range: 4.5V to 23V.
  • Adjustable Output Voltage Down to 0.765V.
  • 4A Output Current.
  • Fixed 500kHz Switching Frequency.
  • External Programmable Soft-Start or Internal 1ms Soft-Start.
  • PSM (High Efficiency at Light Load).
  • Cycle-by-Cycle Current Limit.
  • Over-Temperature Protection with Auto Recovery.
  • Under Voltage Lockout.

📥 Download Datasheet

Datasheet preview – FR8018

Datasheet Details

Part number FR8018
Manufacturer Fiti
File Size 586.12 KB
Description 500KHz Synchronous Step-Down DC/DC Converter
Datasheet download datasheet FR8018 Datasheet
Additional preview pages of the FR8018 datasheet.

📁 Similar Datasheet

  • FR8018H - Bluetooth Low Energy SOC (FREQCHIP)
  • FR801 - FAST RECOVERY RECTIFIER DIODES (EIC)
  • FR801 - FAST RECOVERY RECTIFIER (Rectron)
  • FR801 - FAST RECOVERY RECTIFIER (Diodesorporated)
  • FR801 - FAST RECOVERY RECTIFIER (Formosa MS)
  • FR8012HAQ - Bluetooth Low Energy SOC (FREQCHIP)
  • FR801G - Fast Recovery Rectifiers (Eris)
  • FR801G - GLASS PASSIVATED FAST RECOVERY RECTIFIERS (Sangdest Microelectronics)
  • FR801G - FAST RECOVERY RECTIFIER (Won-Top Electronics)
  • FR801S - Fast Recovery Rectifiers (Eris)
Other Datasheets by Fiti
  • FR8204 - 500KHz Synchronous Step-Down DC/DC Converter
  • FR8205 - 500KHz Synchronous Step-Down 85T DC/DC Converter
  • FR8206 - 500KHz Synchronous Step-Down DC/DC Converter

Full PDF Text Transcription

Click to expand full text

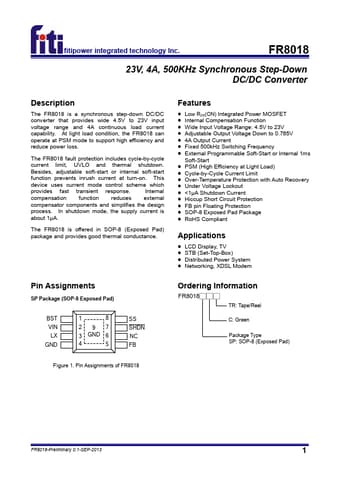

fitipower integrated technology lnc. FR8018 23V, 4A, 500KHz Synchronous Step-Dow85nT DC/DC Converter Description The FR8018 is a synchronous step-down DC/DC converter that provides wide 4.5V to 23V input voltage range and 4A continuous load current capability. At light load condition, the FR8018 can operate at PSM mode to support high efficiency and reduce power loss. The FR8018 fault protection includes cycle-by-cycle current limit, UVLO and thermal shutdown. Besides, adjustable soft-start or internal soft-start function prevents inrush current at turn-on. This device uses current mode control scheme which provides fast transient response. Internal compensation function reduces external compensator components and simplifies the design process.
Published: |
