MC4813 Dual P-Channel MOSFET

MC4813 Description

Freescale AO4813/ MC4813 Dual P-Channel 30-V (D-S) MOSFET Key .

MC4813 Features

* Low rDS(on) trench technology
* Low thermal impedance

MC4813 Applications

* White LED boost converters
* Automotive Systems
* Industrial DC/DC Conversion Circuits PRODUCT SUMMARY rDS(on) (mΩ) 21 @ VGS = -10V 35 @ VGS = -4.5V VDS (V) -30 ID (A) -8.2 -6.4 ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol Limit VDS Drain

📥 Download Datasheet

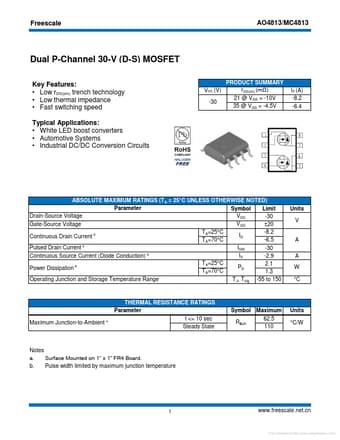

Preview of MC4813 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC4813
Manufacturer
FreesCale
File Size
596.64 KB
Datasheet
MC4813_FreesCale.pdf
Description
Dual P-Channel MOSFET
