MC4863PD, MC4863 Dual 2.2W Audio Amplifier

Description

MC4863 Dual 2.2W Audio Amplifier Plus Stereo Headphone Function General .
The MC4863 is a dual bridge-connected audio power amplifier which, when connected to a 5V supply, will deliver 2.

📥 Download Datasheet

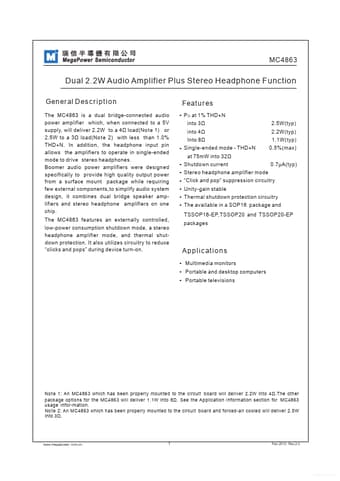

MC4863PD Datasheet Preview — This datasheet PDF includes multiple part numbers: MC4863PD, MC4863. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MC4863PD, MC4863
Manufacturer: MegaPower
File Size: 1.78 MB
Datasheet: MC4863-MegaPower.pdf
Description: Dual 2.2W Audio Amplifier
Note: This datasheet PDF includes multiple part numbers: MC4863PD, MC4863.
Please refer to the document for exact specifications by model.

Features

* an externally controlled, low-power consumption shutdown mode, a stereo headphone amplifier mode, and thermal shutdown protection. It also utilizes circuitry to reduce “clicks and pops” during device turn-on. Features . PO at 1% THD+N into 3Ω 2.5W(typ) into 4Ω . Into 8Ω Single-ended mode - THD+N

Applications

* . Multimedia monitors . Portable and desktop computers . Portable televisions Note 1: An MC4863 which has been properly mounted to the circuit board will deliver 2.2W into 4Ω. The other package options for the MC4863 will deliver 1.1W into 8Ω. See the Application Information section for MC4863 usage
