MC4863M, MC4863 - Dual 2.2W Audio Amplifier

The MC4863M by MegaPower is a Dual 2.2W Audio Amplifier. Below is the official datasheet preview.

MC4863M Dual 2.2W Audio Amplifier by MegaPower - Datasheet Preview — Official preview page of the **MC4863M** Dual 2.2W Audio Amplifier datasheet (MegaPower).

Datasheet Details

Part number	MC4863M, MC4863
Manufacturer	MegaPower
File Size	1.78 MB
Description	Dual 2.2W Audio Amplifier
Datasheet	MC4863-MegaPower.pdf
Note	This datasheet PDF includes multiple part numbers: MC4863M, MC4863. Please refer to the document for exact specifications by model.

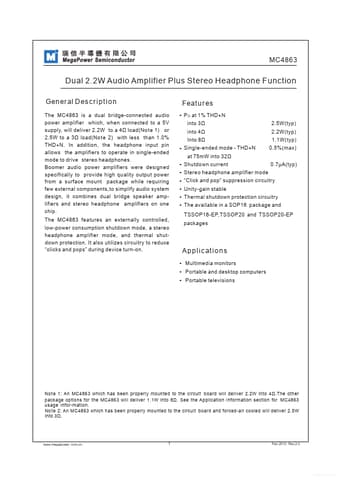

Additional preview pages of the MC4863M datasheet.

MC4863M Product details

Description

The MC4863 is a dual bridge-connected audio power amplifier which, when connected to a 5V supply, will deliver 2.2W to a 4Ω load(No t e 1) or 2.5W to a 3Ω load(Note 2) with less than 1.0% THD+N.

Features

an externally controlled, low-power consumption shutdown mode, a stereo headphone amplifier mode, and thermal shutdown protection. It also utilizes circuitry to reduce “clicks and pops” during device turn-on. Features . PO at 1% THD+N into 3Ω 2.5W(typ) into 4Ω . Into 8Ω Single-ended mode - THD+N 2.2W(typ) 1.1W(typ) 0.5%(max) at 75mW into 32Ω . Shutdown current 0.7μA(typ) . Stereo headphone amplifier mode . “Click and pop” suppression circuitry . Unity-gain stable . Thermal shutdown pr.
