MC4803A

P-Channel MOSFET

MC4803A Features

* Low rDS(on) trench technology

* Low thermal impedance

* Fast switching speed Typical Applications:

* White LED boost converters

* Automotive Systems

* Industrial DC/DC Conversion Circuits PRODUCT SUMMARY rDS(on) (mΩ) 52 @ VGS = -10V 89 @ VGS = -4.5V

MC4803A Datasheet (530.38 KB)

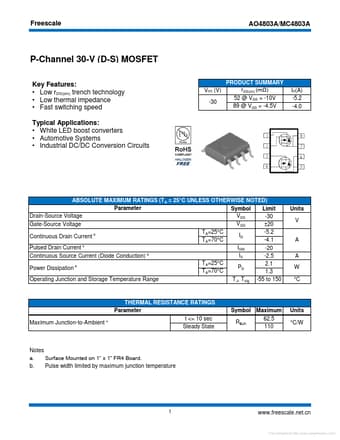

Preview of MC4803A PDF

Datasheet Details

Part number:

MC4803A

Manufacturer:

FreesCale

File Size:

530.38 KB

Description:

P-channel mosfet.
