MC4863S

Dual 2.2W Audio Amplifier

MC4863S Features

* an externally controlled, low-power consumption shutdown mode, a stereo headphone amplifier mode, and thermal shutdown protection. It also utilizes circuitry to reduce “clicks and pops” during device turn-on. Features . PO at 1% THD+N into 3Ω 2.5W(typ) into 4Ω . Into 8Ω Single-ended mode - THD+N

MC4863S General Description

The MC4863 is a dual bridge-connected audio power amplifier which, when connected to a 5V supply, will deliver 2.2W to a 4Ω load(No t e 1) or 2.5W to a 3Ω load(Note 2) with less than 1.0% THD+N. In addition, the headphone input pin allows the amplifiers to operate in single-ended mode to drive stere.

MC4863S Datasheet (1.78 MB)

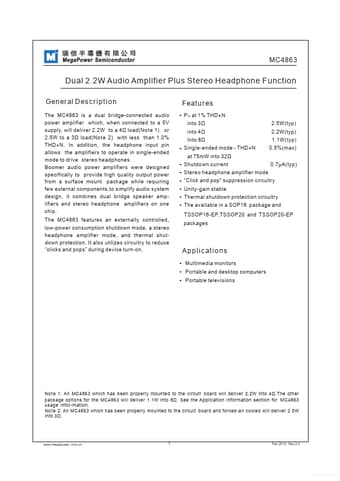

Preview of MC4863S PDF

Datasheet Details

Part number:

MC4863S

Manufacturer:

MegaPower

File Size:

1.78 MB

Description:

Dual 2.2w audio amplifier.
