MC4805

Dual P-Channel MOSFET

MC4805 Features

* Low rDS(on) trench technology

* Low thermal impedance

* Fast switching speed Typical Applications:

* White LED boost converters

* Automotive Systems

* Industrial DC/DC Conversion Circuits PRODUCT SUMMARY rDS(on) (mΩ) 21 @ VGS = -10V 35 @ VGS = -4.5V

MC4805 Datasheet (523.82 KB)

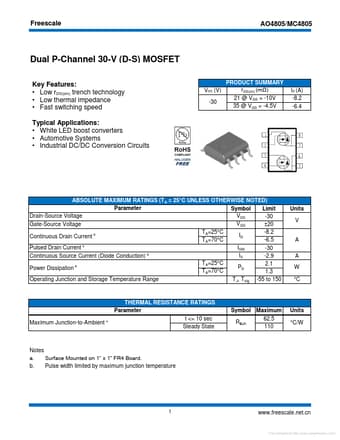

Preview of MC4805 PDF

Datasheet Details

Part number:

MC4805

Manufacturer:

FreesCale

File Size:

523.82 KB

Description:

Dual p-channel mosfet.
