MC9S08SH4 - Microcontrollers

Product Overview

Freescale Semiconductor

Datasheet Details

Part number	MC9S08SH4
Manufacturer	Freescale Semiconductor
File Size	1.36 MB
Description	Microcontrollers
Datasheet	MC9S08SH4 Datasheet

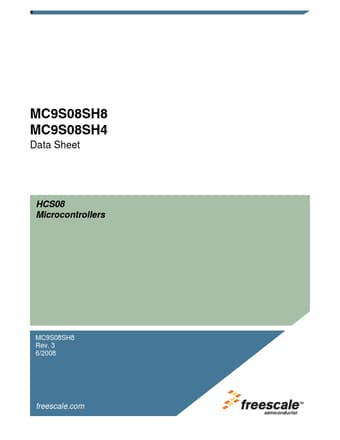

Additional preview pages of the MC9S08SH4 datasheet.

Product details

Description

of Changes Initial review copy Updated Electricals and incorporated revisions from Project sync issues: 2394, 2600, 2601, and 2764. Corrected SPI module to be version 3. Incorporated ﬁxes for Project Sync issues: 2394, 2600, 2601, 2764, 3237, and 3279; as well as, ADC Temperature Sensor issues 3331 and 3335. Adjusted

Features

8-Bit HCS08 Central Processor Unit (CPU).
40-MHz HCS08 CPU (central processor unit).
HC08 instruction set with added BGND instruction.
Support for up to 32 interrupt/reset sources On-Chip Memory.
FLASH read/program/erase over full operating voltage and temperature.
Random-access memory (RAM) Power-Saving Modes.
Two very low power stop modes.
Reduced power wait mode.
Very low power real time interrupt for use in run, wait, a.
