Pin Number 1, 3, 5, 50, 52, 54 2, 4, 6, 49, 51, 53 Pin Name VDSNS1VDSNS6 GD1-GD6 Output Input Gate Driver Output Pin Function Input Formal Name Drain Voltage Sense Definition The VDSNS pin is used to monitor the
Freescale Semiconductor Advance Information Document Number: MC33800 Rev.

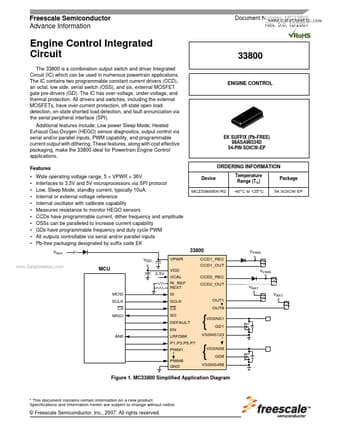

5.0, 10/2007 Engine Control Integrated Circuit The 33800 is a combination output switch and driver Integrated Circuit (IC) which can be used in numerous powertrain applications.
The IC contains two programmable constant current drivers (CCD), an octal, low side, serial switch (OSS), and six, external MOSFET gate pre-drivers (GD).
The IC has over-voltage, under-voltage, and thermal protection.
All drivers and switches, in
MCZ33800 Features
* include: Low power Sleep Mode, Heated Exhaust Gas Oxygen (HEGO) sensor diagnostics, output control via serial and/or parallel inputs, PWM capability, and programmable current output with dithering. These features, along with cost effective packaging, make the 33800 ideal for Powertrain Engine Contro
MCZ33800_FreescaleSemiconductor.pdf
Datasheet Details
MCZ33800
Freescale Semiconductor
1.89 MB
Engine control integrated circuit.
