MCZ1210DH Description

EMC Components Common mode filters Ultra high-speed differential signal line (HDMI, DVI, USB3.0) MCZ-DH series RoHS Cl Br REACH Halogen SVHC-Free Fr.

MCZ1210DH Features

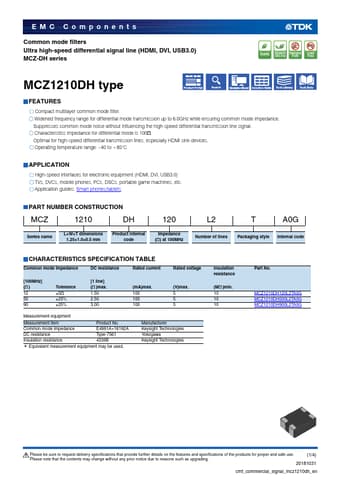

* Compact multilayer common mode filter. Widened frequency range for differential mode transmission up to 6.0GHz while ensuring common mode impedance. Suppresses common mode noise without influencing the high-speed differential transmission line signal. Characteristics impedance for differential mode
