MCZ33198 Datasheet - Freescale Semiconductor

MCZ33198 Automotive High-Side TMOS Driver

www.DataSheet4U.com Freescale Semiconductor Technical Data Document Number: MC33198 Rev. 2.0, 11/2006 Automotive High-Side TMOS Driver The MC33198 is a high-side TMOS driver, dedicated to automotive applications. It is used in conjunction with an external power MOSFET for high-side drive applications. The device can drive and protect a large variety of MOSFETs. The device has a CMOS compatible input control, charge pump to drive the MOSFET gate, and fault detection circuitry based on programm.

MCZ33198 Features

* Designed for Automotive High Side Driver Application

* Works with a Wide Variety of N-Channel Power MOSFETs ORDERING INFORMATION

* PWM Capability

* On Board Charge Pump Capable of Charging 25nF in less than 1ms Temperature Device Package with No External Components

MCZ33198 Datasheet (265.16 KB)

Preview of MCZ33198 PDF

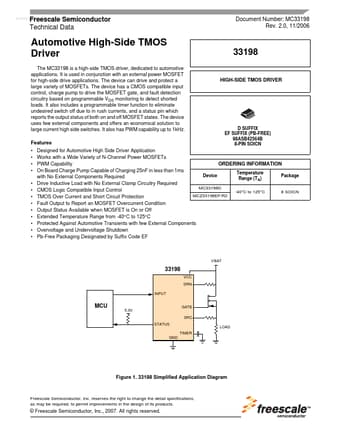

MCZ33198 Datasheet Preview Page 2 MCZ33198 Datasheet Preview Page 3

Datasheet Details

Part number:

MCZ33198

Manufacturer:

Freescale Semiconductor

File Size:

265.16 KB

Description:

Automotive high-side tmos driver.
