MCZ1210CH - EMC Components

MCZ1210CH Description

EMC Components Common mode filters Ultra high-speed differential signal line (HDMI, DVI) MCZ-CH series RoHS Cl Br REACH Halogen SVHC-Free Free Pb L.

MCZ1210CH Features

* Compact multilayer common mode filter. Widened frequency range for differential mode transmission up to 3.5GHz while ensuring common mode impedance. Suppresses common mode noise without influencing the high-speed differential transmission line signal. Characteristics impedance for differential mode

📥 Download Datasheet

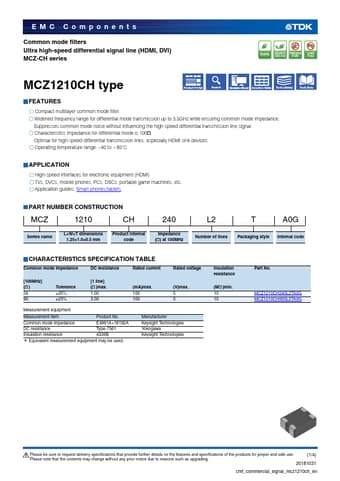

Preview of MCZ1210CH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MCZ1210CH
Manufacturer
TDK
File Size
179.21 KB
Datasheet
MCZ1210CH-TDK.pdf
Description
EMC Components
