MCZ33879

Configurable Octal Serial Switch

MCZ33879 Features

* include very low standby currents, cascade fault reporting, internal + 45 V clamp voltage for low-side configuration, - 20 V high-side configuration, output-specific diagnostics, and independent overtemperature protection. Features

* Designed to Operate 5.5 V < VPWR < 26.5 V

* 16-Bit

MCZ33879 General Description

of each pin can be found in the Functional Pin Description section beginning on page 15. Pin Number 1 2 Pin Name GND VDD S8 NC D8 S2 D2 S1 D1 D6 S6 IN6 EN SCLK DI CS IN5 S5 D5 D3 Pin Function Ground Input Formal Name Ground Logic Supply Voltage Source Output 8 Not Connected Drain Output 8 Source Out.

MCZ33879 Datasheet (922.15 KB)

Preview of MCZ33879 PDF

Datasheet Details

Part number:

MCZ33879

Manufacturer:

Freescale Semiconductor

File Size:

922.15 KB

Description:

Configurable octal serial switch.

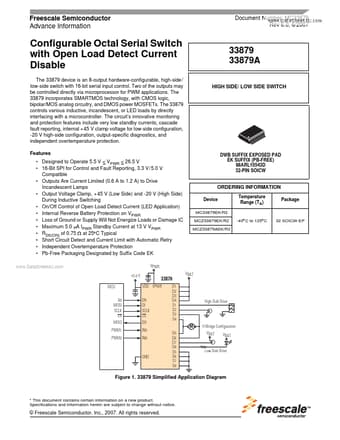

Freescale Semiconductor Advance Information Document Number: MC33879 Rev 6.0, 6/2007 Configurable Octal Serial Switch with Open Load Detect Current .
