MML20242HT1 Datasheet - Freescale Semiconductor

MML20242HT1 Enhancement Mode pHEMT

Part Number C1, C5 18 pF Chip Capacitors GJM1555C1H180GB01 C2, C3, C8, C11, C12 18 pF Chip Capacitors GRM1555C1H180JA01 C4, C10, C13 0.1 F Chip Capacitors GRM155R61A104K01 C6, C9 Components Not Placed C7 0.6 pF Chip Capacitor GJM1555C1HR60WB01 L1 3.3 nH Chip Inductor 0402HP

Freescale Semiconductor Technical Data Document Number: MML20242H Rev. 2, 9/2014 Enhancement Mode pHEMT Technology (E pHEMT) Low Noise Amplifier The MML20242H is a 2 stage low noise amplifier (LNA) with active bias and high isolation for use in cellular infrastructure applications. It is designed for a range of low noise, high linearity applications such as picocell, femtocell, tower mounted amplifiers (TMA) and receiver front end circuits. It operates from a single vol.

MML20242HT1 Features

* Low Noise Figure: 0.59 dB @ 1950 MHz

* Frequency: 1400

* 2800 MHz

* Unconditionally Stable over Temperature

* High Reverse Isolation:

* 51 dB @ 1950 MHz

* P1dB: 24 dBm @ 1950 MHz

* Small

* Signal Gain: 34 dB @ 1950 MHz

* Third Order Output Intercept P

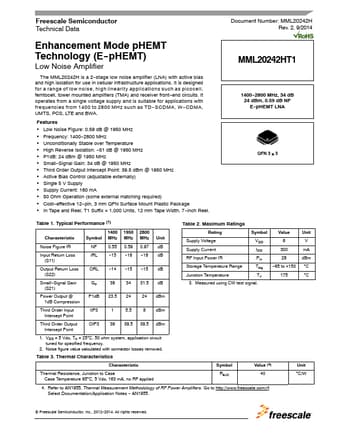

MML20242HT1 Datasheet (554.60 KB)

MML20242HT1 Datasheet Preview — Preview of MML20242HT1 PDF

Datasheet Details

Part number:

MML20242HT1

Manufacturer:

Freescale Semiconductor

File Size:

554.60 KB

Description:

Enhancement mode phemt.
