MPX2053 Silicon Pressure Sensors

Freescale Semiconductor Data Sheet: Technical Data Pressure MPX2053 Rev 9, 10/2012 50 kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors The MPX2053 series devices are silicon piezoresistive pressure sensors that provide a highly accurate and linear voltage output directly proportional to the applied pressure. A single, monolithic silicon diaphragm with the strain gauge and an integrated thin-film resistor network. Precise span and offset calibration with temperature c.

MPX2053 Features

* Temperature Compensated Over 0C to +85C

* Easy-to-Use Chip Carrier Package Options

* Ratiometric to Supply Voltage

* Gauge Ported and Non Ported Options

* Available in Easy-to-Use Tape & Reel

* Differential and Gauge Pressure Options MPX2053 Serie

MPX2053 Datasheet (338.02 KB)

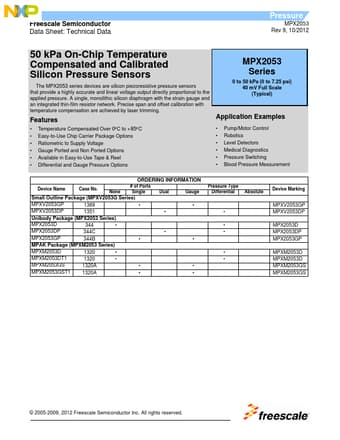

MPX2053 Datasheet Preview — Preview of MPX2053 PDF

Datasheet Details

Part number:

MPX2053

Manufacturer:

Freescale Semiconductor

File Size:

338.02 KB

Description:

Silicon pressure sensors.
