SB3060CT, SB3040CT 30A SCHOTTKY BARRIER RECTIFIERS

SB3060CT Description

SB3040(F)CT THRU SB3065(F)CT SPECIFICATION Rev.A 30A SCHOTTKY BARRIER RECTIFIERS Fig 1.TO-220AB FOR SB30xxCT PRODUCT .

SB3060CT Features

* 1. FLAMMABILITY CLASSIFICATION 94V-0 2. EXTREMELY LOW VF 3. LOW STORED CHARGE 4. MAJORITY CARRIER CONDUCTION 5. LOW POWER LOSS/HIGH EFFICIENCY 6. CASE: TRANSFER MOLDED TO-220AB FOR SB30xxCT ITO-220AB FOR SB30xxFCT 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. LEADS: SOLDERABILITY PER MIL-STD-202 METH

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB3060CT, SB3040CT. Please refer to the document for exact specifications by model.

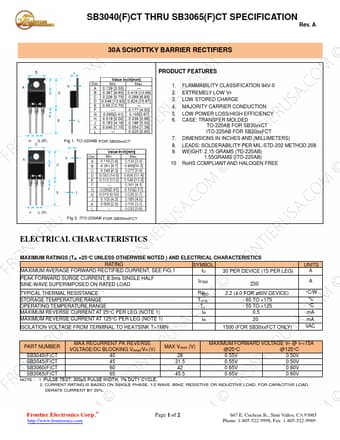

datasheet Preview Page 2

Datasheet Details

Part number
SB3060CT, SB3040CT
Manufacturer
Frontier Electronics
File Size
493.25 KB
Datasheet
SB3040CT-FrontierElectronics.pdf
Description
30A SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SB3060CT, SB3040CT.
Please refer to the document for exact specifications by model.
