2SK2272-01R Datasheet, Mos-fet, Fuji Electric

2SK2272-01R Features

  • Mos-fet High Speed Switching Low On-Resistance No Secondary Breakdown Low Driving Power High Voltage VGS = ± 30V Guarantee Avalanche Proof N-channel MOS-FET 900V 2,8Ω 5A 80W > Outline Draw

PDF File Details

Part number:

2SK2272-01R

Manufacturer:

Fuji Electric

File Size:

92.67kb

Download:

📄 Datasheet

Description:

N-channel mos-fet.

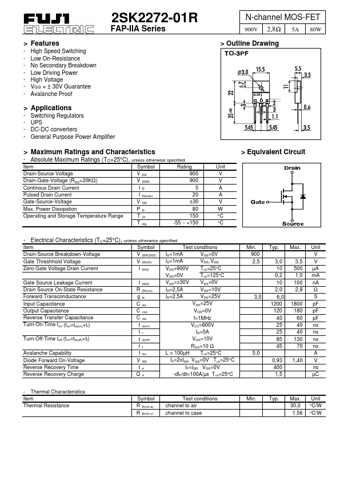

Datasheet Preview: 2SK2272-01R 📥 Download PDF (92.67kb)
Page 2 of 2SK2272-01R

2SK2272-01R Application

  • Applications Switching Regulators UPS DC-DC converters General Purpose Power Amplifier > Maximum Ratings and Characteristics - Absolute Maximum Rat
