2SK2275 - SWITCHING N-CHANNEL POWER MOSFET

2SK2275 Description

www.DataSheet4U.com DATA SHEET MOS FIELD EFFECT TRANSISTOR 2SK2275 SWITCHING N-CHANNEL POWER MOS FET INDUSTRIAL USE .
The 2SK2275 is N-channel Power MOS Field Effect Transistor designed for high voltage switching applications.

2SK2275 Features

* φ3.2 ± 0.2
* Low On-state Resistance RDS(on) = 2.8 Ω MAX. (VGS = 10 V, ID = 2.0 A) 3 ± 0.1 1 2 3 4 ± 0.2 12.0 ± 0.2 13.5 MIN. 0.65 ± 0.1 LOW Ciss Ciss = 1 000 pF TYP. High Avalanche Capability Ratings ABSOLUTE MAXIMUM RATINGS (TA = 25 °C) Drain to Source Voltage Ga

📥 Download Datasheet

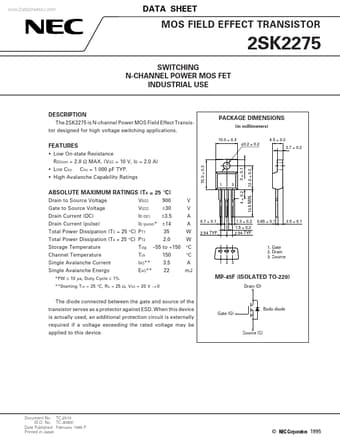

Preview of 2SK2275 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK2275
Manufacturer
NEC
File Size
122.74 KB
Datasheet
2SK2275_NEC.pdf
Description
SWITCHING N-CHANNEL POWER MOSFET
