2SK3684-01SJ, 2SK3684-01S N-CHANNEL SILICON POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

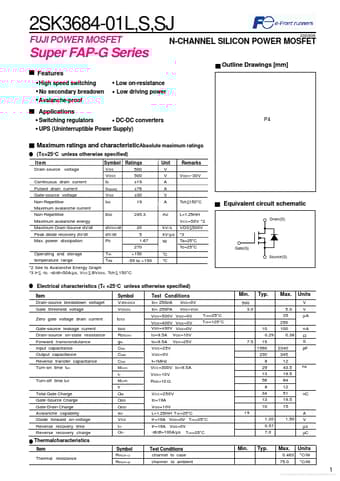

2SK3684-01L,S,SJ FUJI POWER MOSFET 200309 N-CHANNEL SILICON POWER MOSFET Outline Drawings [mm] Super FAP-G Series .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SK3684-01SJ, 2SK3684-01S. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SK3684-01SJ, 2SK3684-01S
Manufacturer
Fuji Electric
File Size
284.31 KB
Datasheet
2SK3684-01S_FujiElectric.pdf
Description
N-CHANNEL SILICON POWER MOSFET
Note
This datasheet PDF includes multiple part numbers: 2SK3684-01SJ, 2SK3684-01S.
Please refer to the document for exact specifications by model.

Applications

* Switching regulators DC-DC converters UPS (Uninterruptible Power Supply) P4 Maximum ratings and characteristicAbsolute maximum ratings (Tc=25°C unless otherwise specified) Item Drain-source voltage Continuous drain current Pulsed drain current Gate-source voltage Non-Repetitive Maximum avalanche cu
