2SD1740 - NPN Transistor

2SD1740 Description

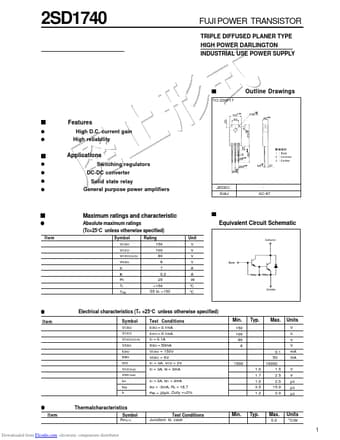

2SD1740 FUJI POWER TRANSISTOR TRIPLE DIFFUSED PLANER TYPE HIGH POWER DARLINGTON INDUSTRIAL USE POWER SUPPLY Outline Drawings TO-220F17 .

2SD1740 Applications

* Switching regulators DC-DC converter Solid state relay General purpose power amplifiers JEDEC EIAJ SC-67 Maximum ratings and characteristic Absolute maximum ratings (Tc=25°C unless otherwise specified) Item Symbol VCBO VCEO VCEO(SUS) VEBO IC IB PC Tj Tstg Rating 150 100 80 6 7 0.2 25 +150 -55 to +1

📥 Download Datasheet

Preview of 2SD1740 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1740
Manufacturer
Fuji
File Size
326.72 KB
Datasheet
2SD1740-Fuji.pdf
Description
NPN Transistor
