2SD1741

Silicon NPN triple diffusion planar type Transistor

Panasonic Semiconductor

Download Datasheet (49.13 KB)

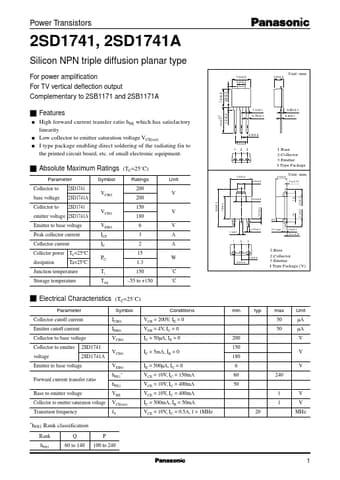

2SD1741 Datasheet Preview — Preview of 2SD1741 Datasheet

Datasheet Details

Part number:

2SD1741

Manufacturer:

Panasonic Semiconductor

File Size:

49.13 KB

Description:

Silicon npn triple diffusion planar type transistor.
Power Transistors 2SD1741, 2SD1741A Silicon NPN triple diffusion planar type For power amplificatio.
n For TV vertical deflection output Complementary to 2SB1171 and 2SB1171A 7.0±0.3 3.0±0.2 3.5±0.2 U.

✔ 2SD1741 Features

1.1±0.1 0.75±0.1 0.85±0.1 0.4±0.1 2.3±0.2 4.6±0.4 1 2 3 s Absolute Maximum Ratings Parameter Collector to base voltage Collector to 2SD1741 2SD1741A 2SD1741 Symbol VC
