2SD1743A Silicon NPN triple diffusion planar type Transistor

📥 Download Datasheet  Datasheet Preview Page 1

Description

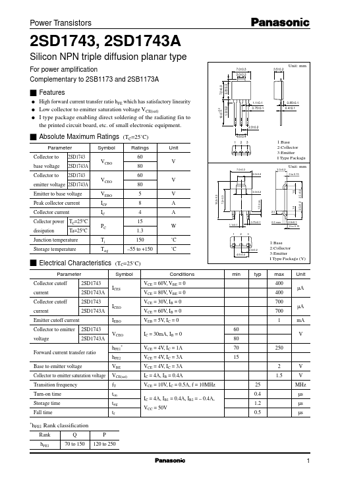

Power Transistors 2SD1743, 2SD1743A Silicon NPN triple diffusion planar type For power amplification Complementary to 2SB1173 and 2SB1173A 7.0±0.3 3..

📥 Download Datasheet

Preview of 2SD1743A PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SD1743A
Manufacturer
Panasonic Semiconductor
File Size
49.97 KB
Datasheet
2SD1743A_PanasonicSemiconductor.pdf
Description
Silicon NPN triple diffusion planar type Transistor

Features

* q q q High forward current transfer ratio hFE which has satisfactory linearity Low collector to emitter saturation voltage VCE(sat) I type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. (TC=25˚C) Ratings 60 80 60 80 5 8 4 15
