2SD1742 Silicon NPN triple diffusion planar type Transistor

📥 Download Datasheet  Datasheet Preview Page 1

Description

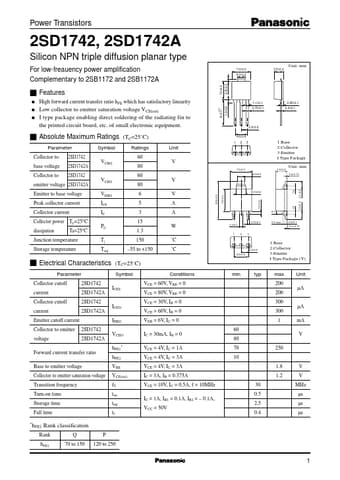

Power Transistors 2SD1742, 2SD1742A Silicon NPN triple diffusion planar type For low-freauency power amplification Complementary to 2SB1172 and 2SB11.

📥 Download Datasheet

Preview of 2SD1742 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
2SD1742
Manufacturer
Panasonic Semiconductor
File Size
49.88 KB
Datasheet
2SD1742_PanasonicSemiconductor.pdf
Description
Silicon NPN triple diffusion planar type Transistor

Features

* q q q High forward current transfer ratio hFE which has satisfactory linearity Low collector to emitter saturation voltage VCE(sat) I type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. (TC=25˚C) Ratings 60 80 60 80 6 5 3 15
