MB15E05 ASSP Single Serial Input PLL Frequency Synthesizer On-Chip 2.0GHz Prescaler

The Fujitsu MB15E05 is serial input Phase Locked Loop (PLL) frequency synthesizers with a 2.0 GHz prescaler. A 64/65 or a 128/129 can be selected for the prescaler that enables pulse swallow operation. The latest BiCMOS process technology is used, resuItantly a supply current is limited as low as 6.

MB15E05 Features

* High frequency operation: 2.0 GHz max Low power supply voltage: VCC = 2.7 to 3.6V Very Low power supply current : ICC = 6.0 mA typ. (Vcc = 3V) Power saving function : IPS = 10 µA max. Pulse swallow function: 64/65 or 128/129 Seria

MB15E05 Datasheet (145.19 KB)

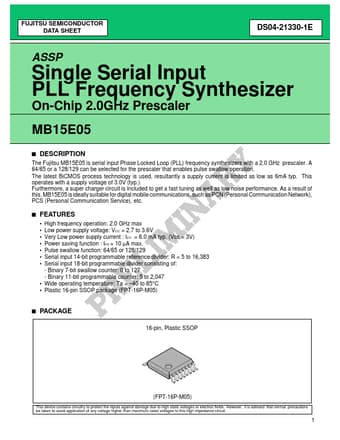

MB15E05 Datasheet Preview — Preview of MB15E05 PDF

Datasheet Details

Part number:

MB15E05

Manufacturer:

Fujitsu Media Devices

File Size:

145.19 KB

Description:

Assp single serial input pll frequency synthesizer on-chip 2.0ghz prescaler.
