MB1501 - SERIAL INPUT PLL FREQUENCY SYNTHESIZER

Datasheet Summary

Description

Pin No.

1 2 Pin Name OSCIN OSCOUT I/O I O Descriptions Oscillator input.

Oscillator output.

Features

  • x 5.5 10.0 V 8.5 10.0 V 8.5 VCC +85 V Unit V °C 7 MB1501 MB1501H MB1501L.

📥 Download Datasheet

Datasheet preview – MB1501

Datasheet Details

Part number MB1501
Manufacturer Fujitsu
File Size 238.28 KB
Description SERIAL INPUT PLL FREQUENCY SYNTHESIZER
Datasheet download datasheet MB1501 Datasheet
Additional preview pages of the MB1501 datasheet.

📁 Similar Datasheet

  • MB1503 - LOW-POWER PLL FREQUENCY SYNTHESIZER (Fujitsu Media Devices)
  • MB1505 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • MB1505 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes) (Rectron)
  • MB1505 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS (Formosa MS)
  • MB1505 - 15 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)
  • MB1505 - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • MB1505 - High Current Bridge Rectifier (Comchip Technology)
  • MB1505W - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS (Formosa MS)
  • MB1505W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • MB1505W - 15 Amp Single Phase Bridge Rectifier (MCC)
Other Datasheets by Fujitsu
  • MB1501H - SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1501L - SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1502 - SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1504 - ASSP SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1504H - ASSP SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1504L - ASSP SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1507 - SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1509 - DUAL SERIAL INPUT PLL FREQUENCY SYNTHESIZER

Full PDF Text Transcription

Click to expand full text

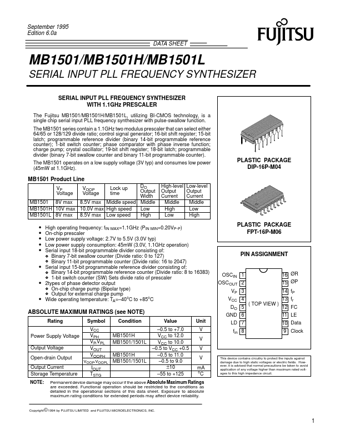

September 1995 Edition 6.0a DATA SHEET MB1501/MB1501H/MB1501L SERIAL INPUT PLL FREQUENCY SYNTHESIZER SERIAL INPUT PLL FREQUENCY SYNTHESIZER WITH 1.1GHz PRESCALER The Fujitsu MB1501/MB1501H/MB1501L, utilizing BI-CMOS technology, is a single chip serial input PLL frequency synthesizer with pulse-swallow function. The MB1501 series contain a 1.1GHz two modulus prescaler that can select either 64/65 or 128/129 divide ratio; control signal generator; 16-bit shift register; 15-bit latch; programmable reference divider (binary 14-bit programmable reference counter); 1-bit switch counter; phase comparator with phase inverse function; charge pump; crystal oscillator; 19-bit shift register; 18-bit latch; programmable divider (binary 7-bit swallow counter and binary 11-bit programmable counter).
