MB1502 - SERIAL INPUT PLL FREQUENCY SYNTHESIZER

Datasheet Summary

Description

Pin No.

O

Oscillator input.

Oscillator output.

A crystal is placed between OSCIN and OSCOUT.

Features

  • High operating frequency: fIN MAX=1.1GHz (VIN MIN=10dBm).
  • Pulse swallow function: 64/65 or 128/129.
  • Low supply current: ICC=8mA typ.
  • Serial input 18-bit programmable divider consisting of:.
  • Binary 7-bit swallow counter: 0 to 127.
  • Binary 11-bit programmable counter: 16 to 2047.
  • Serial input 15-bit programmable reference divider consisting of:.
  • Binary 14-bit programmable reference counter: 8 to 16383.
  • 1-bit switch c.

📥 Download Datasheet

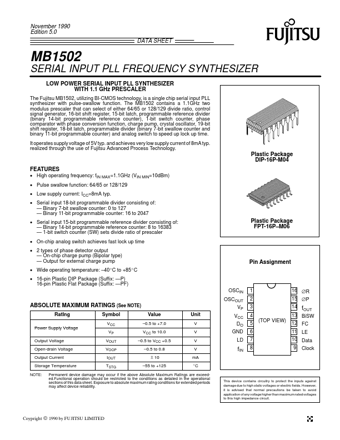

Datasheet preview – MB1502

Datasheet Details

Part number MB1502
Manufacturer Fujitsu
File Size 244.77 KB
Description SERIAL INPUT PLL FREQUENCY SYNTHESIZER
Datasheet download datasheet MB1502 Datasheet
Additional preview pages of the MB1502 datasheet.

📁 Similar Datasheet

  • MB1503 - LOW-POWER PLL FREQUENCY SYNTHESIZER (Fujitsu Media Devices)
  • MB1505 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • MB1505 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes) (Rectron)
  • MB1505 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS (Formosa MS)
  • MB1505 - 15 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)
  • MB1505 - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • MB1505 - High Current Bridge Rectifier (Comchip Technology)
  • MB1505W - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS (Formosa MS)
  • MB1505W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • MB1505W - 15 Amp Single Phase Bridge Rectifier (MCC)
Other Datasheets by Fujitsu
  • MB1501 - SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1501H - SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1501L - SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1504 - ASSP SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1504H - ASSP SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1504L - ASSP SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1507 - SERIAL INPUT PLL FREQUENCY SYNTHESIZER
  • MB1509 - DUAL SERIAL INPUT PLL FREQUENCY SYNTHESIZER

Full PDF Text Transcription

Click to expand full text
November 1990 Edition 5.0 DATA SHEET MB1502 SERIAL INPUT PLL FREQUENCY SYNTHESIZER LOW POWER SERIAL INPUT PLL SYNTHESIZER WITH 1.1 GHz PRESCALER The Fujitsu MB1502, utilizing BI-CMOS technology, is a single chip serial input PLL synthesizer with pulse-swallow function. The MB1502 contains a 1.1GHz two modulus prescaler that can select of either 64/65 or 128/129 divide ratio, control signal generator, 16-bit shift register, 15-bit latch, programmable reference divider (binary 14-bit programmable reference counter), 1-bit switch counter, phase comparator with phase conversion function, charge pump, crystal oscillator, 19-bit shift register, 18-bit latch, programmable divider (binary 7-bit swallow counter and binary 11-bit programmable counter) and analog switch to speed up lock up time.
