MB1510W - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS

Datasheet Summary

Features

  • Superior thermal design.
  • 300 amperes surge capability.
  • Mounting: Hole thru for #8 screw .042(1.1) DIA. .039(1.0) TYP. .452 MAX. (11.5) .591 MIN. (15.0) 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) HOLE FOR NO. 8 SCREW AC .732(18.6) .692(17.6) + AC .468(11.9) .429(10.9) 1.181(30.0) 1.102(28.0) .732(18.6) .692(17.6) Dimensions in inches and (millimeters).

📥 Download Datasheet

Datasheet preview – MB1510W

Datasheet Details

Part number MB1510W
Manufacturer Formosa MS
File Size 34.59 KB
Description SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
Datasheet download datasheet MB1510W Datasheet
Additional preview pages of the MB1510W datasheet.

📁 Similar Datasheet

  • MB1510W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • MB1510W - 15 Amp Single Phase Bridge Rectifier (MCC)
  • MB1510 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • MB1510 - 15 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)
  • MB1510 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes) (Rectron)
  • MB1510 - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • MB1510 - High Current Bridge Rectifier (Comchip Technology)
  • MB151 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • MB151 - 15 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)
  • MB151 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes) (Rectron)
Other Datasheets by Formosa MS
  • MB1510 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
  • MB151 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
  • MB151W - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
  • MB1505 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
  • MB1505W - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
  • MB152 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
  • MB152W - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
  • MB154 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

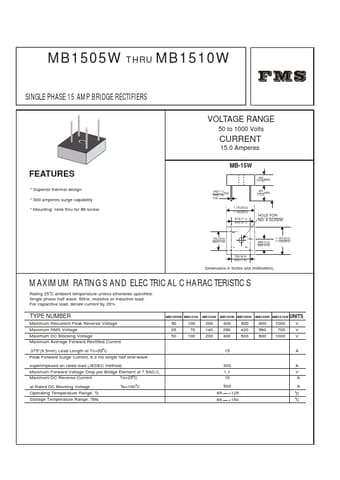

MB1505W THRU MB1510W SINGLE PHASE 15 AMP BRIDGE RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 15.0 Amperes MB-15W FEATURES * Superior thermal design * 300 amperes surge capability * Mounting: Hole thru for #8 screw .042(1.1) DIA. .039(1.0) TYP. .452 MAX. (11.5) .591 MIN. (15.0) 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) HOLE FOR NO. 8 SCREW AC .732(18.6) .692(17.6) + AC .468(11.9) .429(10.9) 1.181(30.0) 1.102(28.0) .732(18.6) .692(17.6) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
