MB1511 - Serial Input PLL Frequency Synthesizer

Datasheet Summary

Description

The Fujitsu MB1511 is a single chip serial input PLL frequency synthesizer designed for VHF tuner and cellular telephone applications.

It contains a 1.1 GHz dual modulus prescaler which enables pulse swallow function, and an analog switch to speed up lock up time.

Features

Low power supply voltage: VCC = 2.7 to 5.5 V High operating frequency: fIN MAX = 1.1 GHz (VIN MIN =.
10dBm) Pulse swallow function: 64/65 or 128/129 Low supply current: ICC = 7 mA typ. Serial input 18-bit programmable divider consisting of: Binary 7-bit swallow counter: 0 to 127 Binary 11-bit programmable counter: 16 to 2047.
Serial input 15-bit programmable reference divider consisting of: Binary 14-bit programmable reference co.

Datasheet Details

Part number	MB1511
Manufacturer	Fujitsu
File Size	127.90 KB
Description	Serial Input PLL Frequency Synthesizer
Datasheet	MB1511 Datasheet

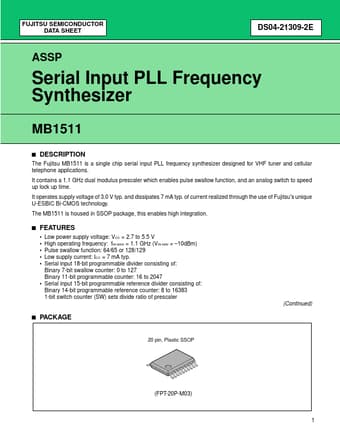

Additional preview pages of the MB1511 datasheet.

📁 Similar Datasheet

MB151 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)

MB151 - 15 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)

MB151 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS (Formosa MS)

MB151 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes) (Rectron)

MB151 - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)

MB151 - High Current Bridge Rectifier (Comchip Technology)

MB1510 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)

MB1510 - 15 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)

MB1510 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS (Formosa MS)

MB1510 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes) (Rectron)

Full PDF Text Transcription

Click to expand full text

FUJITSU SEMICONDUCTOR DATA SHEET DS04-21309-2E ASSP Serial Input PLL Frequency Synthesizer MB1511 s DESCRIPTION The Fujitsu MB1511 is a single chip serial input PLL frequency synthesizer designed for VHF tuner and cellular telephone applications. It contains a 1.1 GHz dual modulus prescaler which enables pulse swallow function, and an analog switch to speed up lock up time. It operates supply voltage of 3.0 V typ. and dissipates 7 mA typ. of current realized through the use of Fujitsu's unique U-ESBIC Bi-CMOS technology. The MB1511 is housed in SSOP package, this enables high integration. s FEATURES • • • • • Low power supply voltage: VCC = 2.7 to 5.5 V High operating frequency: fIN MAX = 1.
