MB151W - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS

Formosa MS

📥 Download Datasheet

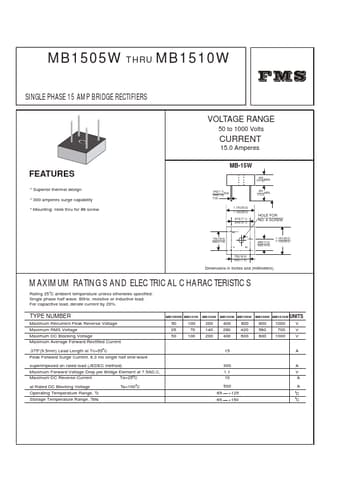

MB151W Datasheet Preview — Preview of MB151W PDF

datasheet Preview Page 2

Datasheet Details

Part number	MB151W
Manufacturer	Formosa MS
File Size	34.59 KB
Description	SINGLE PHASE 15 AMP BRIDGE RECTIFIERS
Datasheet	MB151W_FormosaMS.pdf

MB151W Product details

Features

Superior thermal design.
300 amperes surge capability.
Mounting: Hole thru for #8 screw .042(1.1) DIA. .039(1.0) TYP. .452 MAX. (11.5) .591 MIN. (15.0) 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) HOLE FOR NO. 8 SCREW AC .732(18.6) .692(17.6) + AC .468(11.9) .429(10.9) 1.181(30.0) 1.102(28.0) .732(18.6) .692(17.6) Dimensions in inches and (millimeters).
