MB151M - Glass Passivated Bridge Rectifiers

This page provides the datasheet information for the MB151M, a member of the MB151M-GOOD Glass Passivated Bridge Rectifiers family.

Datasheet Summary

Features

Glass passivated bridge rectifiers.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Low forward voltage drop.
Low leakage current Mechanical Data.
Case:Molded plastic body over passivated junctions.
Terminals: plated leads solderable per MIL-STD-750, Method 2026.
Mounting position: any.
Weight: 0.078oz. , 0.22g MB151M thru MB157M Glass Passivated Bridge Rectifiers Reverse Voltage 50 to 1000V Forward Current 1.5A Package: MBM.

Datasheet Details

Part number	MB151M
Manufacturer	GOOD-ARK
File Size	426.86 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	MB151M Datasheet

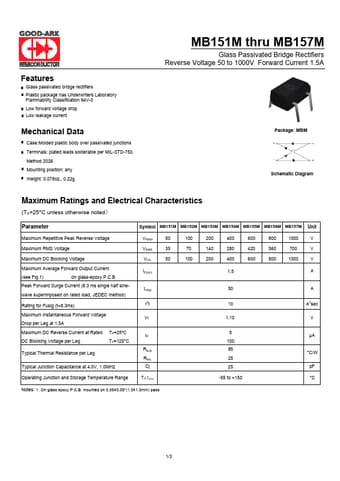

Additional preview pages of the MB151M datasheet.

📁 Similar Datasheet

MB151 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)

MB151 - 15 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)

MB151 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS (Formosa MS)

MB151 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes) (Rectron)

MB151 - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)

MB151 - High Current Bridge Rectifier (Comchip Technology)

MB1510 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)

MB1510 - 15 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)

MB1510 - SINGLE PHASE 15 AMP BRIDGE RECTIFIERS (Formosa MS)

MB1510 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 15 Amperes) (Rectron)

Full PDF Text Transcription

Click to expand full text

Features ■ Glass passivated bridge rectifiers ■ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ■ Low forward voltage drop ■ Low leakage current Mechanical Data ■ Case:Molded plastic body over passivated junctions ■ Terminals: plated leads solderable per MIL-STD-750, Method 2026 ■ Mounting position: any ■ Weight: 0.078oz., 0.22g MB151M thru MB157M Glass Passivated Bridge Rectifiers Reverse Voltage 50 to 1000V Forward Current 1.5A Package: MBM Schematic Diagram Maximum Ratings and Electrical Characteristics (TA=25°C unless otherwise noted） Parameter Symbol MB151M MB152M MB153M MB154M MB155M MB156M MB157M Unit Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Output Current (see Fig.
