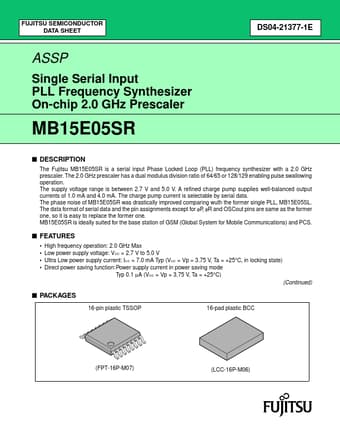

MB15E05SR Single Serial Input PLL Frequency Synthesizer On-chip 2.0 GHz Prescaler

The Fujitsu MB15E05SR is a serial input Phase Locked Loop (PLL) frequency synthesizer with a 2.0 GHz prescaler. The 2.0 GHz prescaler has a dual modulus division ratio of 64/65 or 128/129 enabling pulse swallowing operation. The supply voltage range is between 2.7 V and 5.0 V. A refined charge pump .

MB15E05SR Features

* High frequency operation: 2.0 GHz Max Low power supply voltage: VCC = 2.7 V to 5.0 V Ultra Low power supply current: ICC = 7.0 mA Typ (VCC = Vp = 3.75 V, Ta = +25°C, in locking state) Direct power saving function:Power supply current in power saving mode Typ 0

MB15E05SR_FujitsuMediaDevices.pdf

MB15E05SR Datasheet Preview — Preview of MB15E05SR PDF

Datasheet Details

Part number:

MB15E05SR

Manufacturer:

Fujitsu Media Devices

File Size:

239.59 KB

Description:

Single serial input pll frequency synthesizer on-chip 2.0 ghz prescaler.
