MB39A125 Datasheet - Fujitsu

DC/DC Converter IC

MB39A125 Features

* High efficiency : 97% (MAX) Built-in two constant current control circuits Analog control of the charging current value (+INE1, +INE2 terminal) Built-in AC adapter voltage detection function (ACOK, XACOK terminal) (Continued)

* PACKAGES 24-pin plastic SSO

MB39A125 General Description

MB39A125/126 is a DC/DC converter IC for charging Li-ion battery, which is suitable for down-conversion, and uses pulse width modulation (PWM) for controlling the output voltage and current independently. This IC integrates the build-in comparator for the voltage detection of the AC adapter, and sel.

MB39A125 Datasheet (484.38 KB)

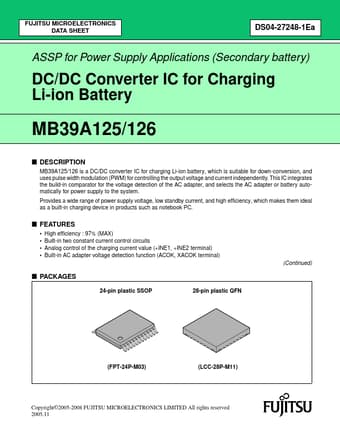

MB39A125 Datasheet Preview — Preview of MB39A125 PDF

Datasheet Details

Part number:

MB39A125

Manufacturer:

Fujitsu

File Size:

484.38 KB

Description:

Dc/dc converter ic.
FUJITSU SEMICONDUCTOR DATA SHEET DS04-27248-1E ASSP for Power Supply Applications (Secondary battery) DC/DC Converter IC for Charging Li-ion Batter.
