MB39A126, MB39A125 - DC/DC Converter IC

MB39A126 Description

FUJITSU SEMICONDUCTOR DATA SHEET DS04-27248-1E ASSP for Power Supply Applications (Secondary battery) DC/DC Converter IC for Charging Li-ion Batter.
MB39A125/126 is a DC/DC converter IC for charging Li-ion battery, which is suitable for down-conversion, and uses pulse width modulation (PWM) for con.

MB39A126 Features

* High efficiency : 97% (MAX) Built-in two constant current control circuits Analog control of the charging current value (+INE1, +INE2 terminal) Built-in AC adapter voltage detection function (ACOK, XACOK terminal) (Continued)
* PACKAGES 24-pin plastic SSO

MB39A126 Applications

* (Secondary battery) DC/DC Converter IC for Charging Li-ion Battery MB39A125/126

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MB39A126, MB39A125. Please refer to the document for exact specifications by model.

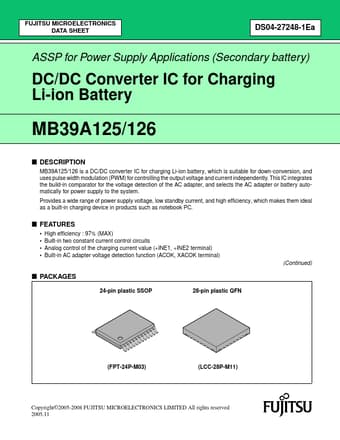

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MB39A126, MB39A125
Manufacturer
Fujitsu
File Size
484.38 KB
Datasheet
MB39A125_Fujitsu.pdf
Description
DC/DC Converter IC
Note
This datasheet PDF includes multiple part numbers: MB39A126, MB39A125.
Please refer to the document for exact specifications by model.
