M162SD13AA Datasheet - Futaba

M162SD13AA VACUUM FLUORESCENT DISPLAY MODULE

Futaba Vacuum Fluorescent Display Module M162SD13AA, with Futaba VFD 162-SD-13INK display, produces 16 digits×2 rows with 5×7 dot matrix. Consisting of a VFD, one chip controller and DC-DC/AC converter, the module can be operated by a synchronous serial interface, and only 5 voltage power source is .

M162SD13AA-Futaba.pdf

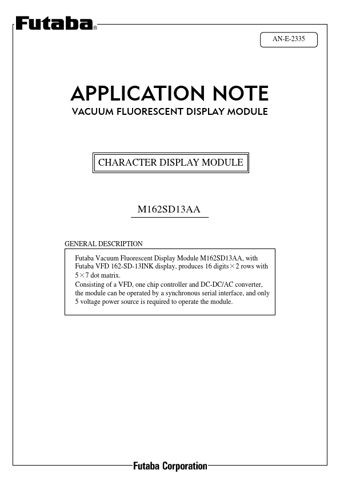

Preview of M162SD13AA PDF
M162SD13AA Datasheet Preview Page 2 M162SD13AA Datasheet Preview Page 3

Datasheet Details

Part number:

M162SD13AA

Manufacturer:

Futaba

File Size:

929.74 KB

Description:

Vacuum fluorescent display module.
