GS6001 - 1MHZ CMOS Rail-to-Rail IO Opamp

Product Overview

Datasheet Details

Part number	GS6001
Manufacturer	GAINSIL
File Size	761.01 KB
Description	1MHZ CMOS Rail-to-Rail IO Opamp
Datasheet	GS6001 Datasheet

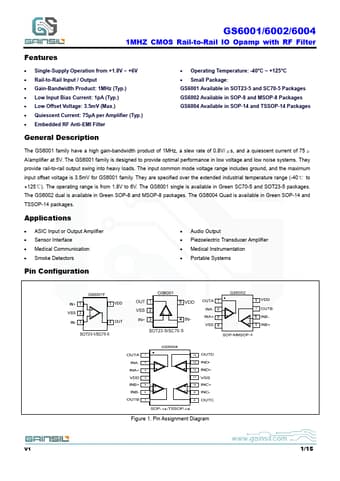

Additional preview pages of the GS6001 datasheet.

Product details

Description

μ μ The GS6001 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.8V/ s, and a quiescent current of 75 A/amplifier at 5V.The GS6001 family is designed to provide optimal performance in low voltage and low noise systems.They provide rail-to-rail output swing into heavy loads.The input common mode voltage range includes ground, and the maximum ℃ input offset voltage is 3.5mV for GS6001 family.They are specified over the extended industrial temperature range (-40 to ℃ +125 ).T

Features

Single-Supply Operation from +1.8V ~ +6V.
Rail-to-Rail Input / Output.
Gain-Bandwidth Product: 1MHz (Typ. ).
Low Input Bias Current: 1pA (Typ. ).
Low Offset Voltage: 3.5mV (Max. ).
Quiescent Current: 75µA per Amplifier (Typ. ).
Embedded RF Anti-EMI Filter.
Operating Temperature: -40°C ~ +125°C.
Small Package: GS6001 Available in SOT23-5 and SC70-5 Packages GS6002 Available in SOP-8 and MSOP-8 Packages GS6004 Availabl.
