GS6004

1MHZ CMOS Rail-to-Rail IO Opamp

GS6004 Features

* Single-Supply Operation from +1.8V ~ +6V

* Rail-to-Rail Input / Output

* Gain-Bandwidth Product: 1MHz (Typ.)

* Low Input Bias Current: 1pA (Typ.)

* Low Offset Voltage: 3.5mV (Max.)

* Quiescent Current: 75µA per Amplifier (Typ.)

* Embedded RF

GS6004 General Description

μ μ The GS6001 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.8V/ s, and a quiescent current of 75 A/amplifier at 5V. The GS6001 family is designed to provide optimal performance in low voltage and low noise systems. They provide rail-to-rail output swing into heavy loads. The i.

GS6004 Datasheet (761.01 KB)

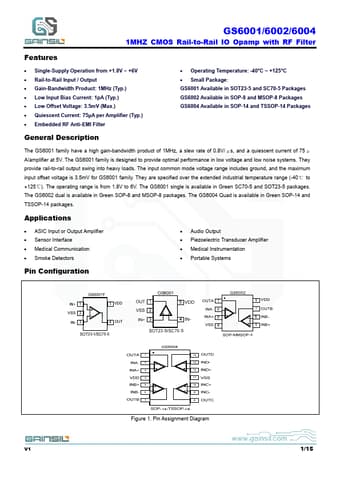

Preview of GS6004 PDF

Datasheet Details

Part number:

GS6004

Manufacturer:

GAINSIL

File Size:

761.01 KB

Description:

1mhz cmos rail-to-rail io opamp.
