GS61008T - Top-side cooled 100V E-mode GaN transistor

GS61008T Description

GS61008T Top-side cooled 100 V E-mode GaN transistor Datasheet .
The GS61008T is an enhancement mode GaN-onsilicon power transistor.

GS61008T Features

* 100 V enhancement mode power transistor
* Top-side cooled configuration
* RDS(on) = 7 mΩ
* IDS(max) = 90 A
* Ultra-low FOM die
* Low inductance GaNPX® package
* Simple gate drive requirements (0 V to 6 V)
* Transient tolerant gate dri

GS61008T Applications

* Energy Storage Systems
* AC-DC Converters (secondary side)
* Uninterruptable Power Supplies
* Industrial Motor Drives
* Fast Battery Charging
* Class D Audio amplifiers
* Traction Drive
* Robotics
* Wireless Power Transfer De

📥 Download Datasheet

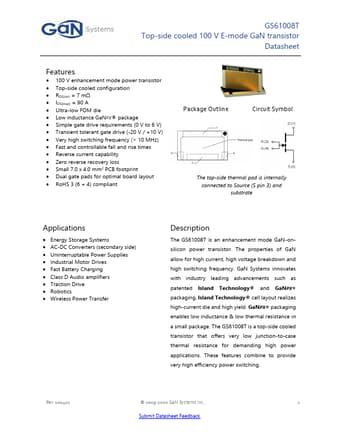

Preview of GS61008T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS61008T
Manufacturer
GaN Systems
File Size
965.05 KB
Datasheet
GS61008T-GaNSystems.pdf
Description
Top-side cooled 100V E-mode GaN transistor
