GS66504B, GS66502B - 650V enhancement mode GaN transistor

GS66504B Description

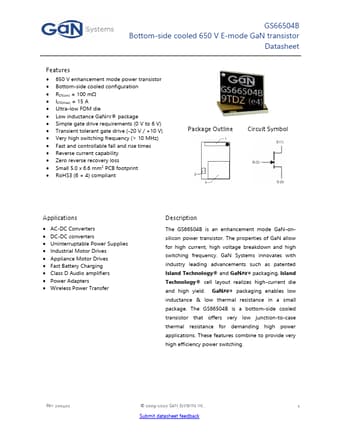

GS66504B Bottom-side cooled 650 V E-mode GaN transistor Datasheet .
The GS66504B is an enhancement mode GaN-onsilicon power transistor.

GS66504B Features

* 650 V enhancement mode power transistor
* Bottom-side cooled configuration
* RDS(on) = 100 mΩ
* IDS(max) = 15 A
* Ultra-low FOM die
* Low inductance GaNPX® package
* Simple gate drive requirements (0 V to 6 V)
* Transient tolerant gat

GS66504B Applications

* AC-DC Converters
* DC-DC converters
* Uninterruptable Power Supplies
* Industrial Motor Drives
* Appliance Motor Drives
* Fast Battery Charging
* Class D Audio amplifiers
* Power Adapters

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS66504B, GS66502B. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS66504B, GS66502B
Manufacturer
GaN Systems
File Size
851.38 KB
Datasheet
GS66502B-GaNSystems.pdf
Description
650V enhancement mode GaN transistor
Note
This datasheet PDF includes multiple part numbers: GS66504B, GS66502B.
Please refer to the document for exact specifications by model.
