1S1885 PLASTIC SILICON RECTIFIER

GALAXY ELECTRICAL

Description

BL GALAXY ELECTRICAL PLASTIC SILICON RECTIFIER 1S1885(Z) - - -1S1888(Z) VOLTAGE RANGE: 100 *- 600 V CURRENT: 1.0 A .

📥 Download Datasheet

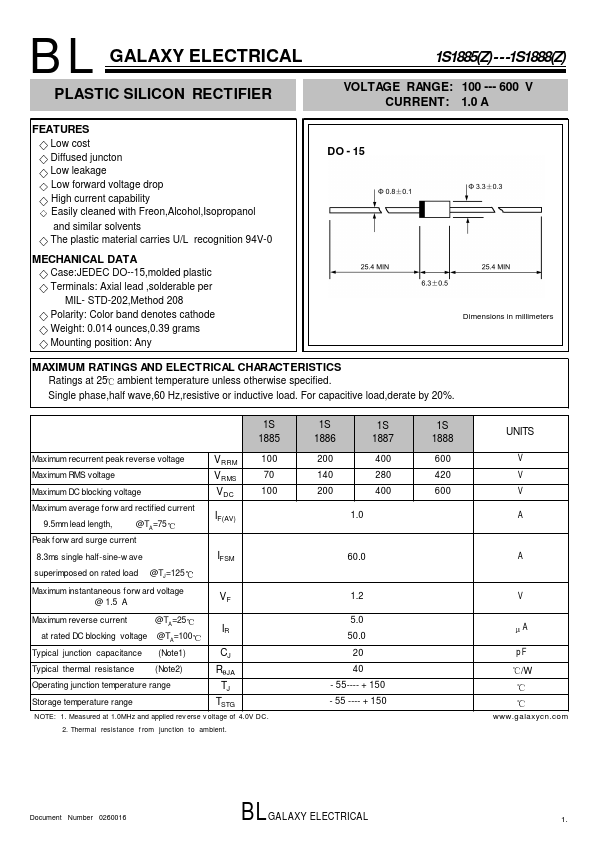

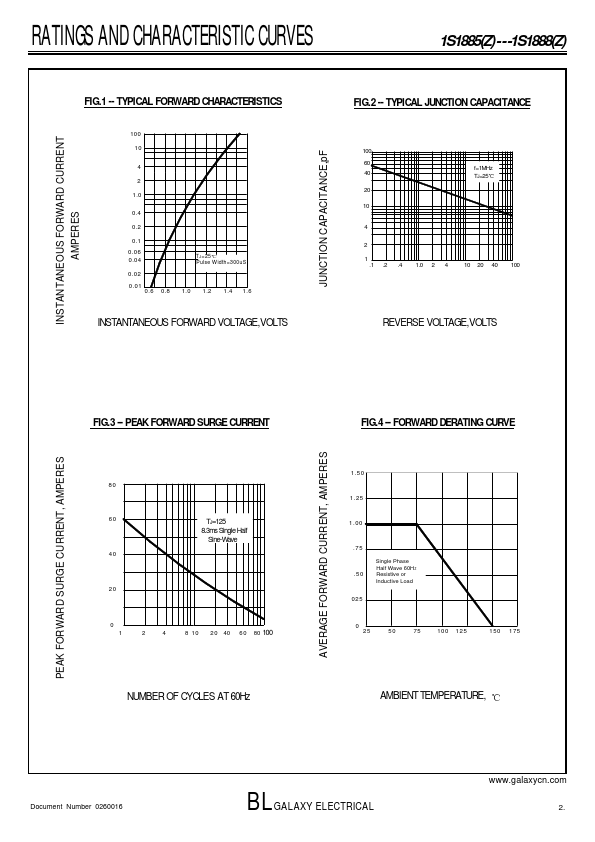

1S1885 Datasheet Preview — Preview of 1S1885 PDF

Datasheet Specifications

Part number: 1S1885
Manufacturer: GALAXY ELECTRICAL
File Size: 233.98 KB
Datasheet: 1S1885-GALAXYELECTRICAL.pdf
Description: PLASTIC SILICON RECTIFIER

Features

* Low cost Diffused juncton Low leakage Low forward voltage drop High current capability Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 MECHANICAL DATA Case:JEDEC DO
* 15,molded plastic Terminals: Axial lead ,solderable per M
