1S1885A Datasheet - Toshiba Semiconductor

1S1885A Silicon Rectifier

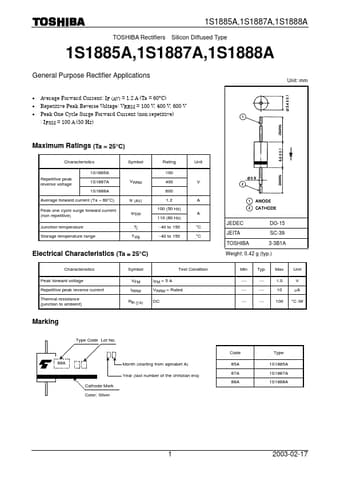

1S1885A,1S1887A,1S1888A TOSHIBA Rectifiers Silicon Diffused Type 1S1885A,1S1887A,1S1888A General Purpose Rectifier Applications Average Forward Current: IF (AV) = 1.2 A (Ta = 60°C) Repetitive Peak Reverse Voltage: VRRM = 100 V, 400 V, 600 V Peak One Cycle Surge Forward Current (non repetitive) : IFSM = 100 A (50 Hz) Unit: mm Maximum Ratings (Ta = 25°C) Characteristics Repetitive peak reverse voltage 1S1885A 1S1887A 1S1888A Average forward current (Ta = 60°C) Peak one cy.

1S1885A Datasheet (61.03 KB)
