1S1829 Silicon Rectifier

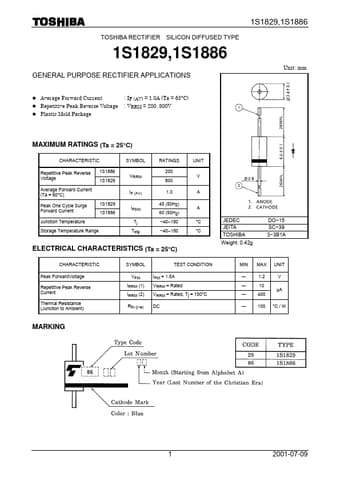

TOSHIBA RECTIFIER SILICON DIFFUSED TYPE 1S1829,1S1886 GENERAL PURPOSE RECTIFIER APPLICATIONS 1S1829,1S1886 Unit: mm l Average Forward Current l Repetitive Peak Reverse Voltage l Plastic Mold Package : IF (AV) = 1.0A (Ta = 65°C) : VRRM = 200, 800V MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC Repetitive Peak Reverse Voltage 1S1886 1S1829 Average Forward Current (Ta = 60°C) Peak One Cycle Surge Forward Current 1S1829 1S1886 Junction Temperature Storage Temperature Range SYMBOL VRRM IF (A.
